DN10 Stainless Steel Whistle-Free Gas Connector: Flexible, Durable, and Quiet Gas Connection Performance

Gas connection components play a critical role in the safety, efficiency, and service life of residential, commercial, and light industrial gas systems. Although a connector may appear to be a relatively small part of an installation, its material quality, sealing structure, dimensional accuracy, flexibility, and resistance to environmental stress can directly influence the reliability of the complete pipeline system. The DN10 stainless steel whistle-free gas connector is designed to address these requirements through a combination of corrosion-resistant stainless steel construction, flexible installation lengths, adaptable connection specifications, and a hard-seal design.

Manufactured from 304 stainless steel with a nominal pipe wall thickness of 0.2 millimeters, this connector offers a practical balance between flexibility and mechanical durability. Its corrugated metal structure allows the connector to accommodate changes in installation direction and positioning while maintaining a dependable passage for gas. The whistle-free design further improves the user experience by reducing the airflow noise that can occur in some gas connection assemblies.

The product is available with a 5/8-18UNF flare nut and several adapter configurations. These options allow the same basic connector platform to serve different equipment interfaces and pipe diameter requirements. Lengths from 12 inches to 72 inches provide installation flexibility for compact appliance connections as well as longer routing requirements. Brass or carbon steel nut options, stainless steel or black finishes, and a hard sealing form give installers additional choices when selecting the appropriate configuration.

Behind the product is a manufacturing organization dedicated to stainless steel bellows and flexible connection technology. Haoyin (Ningbo) Bellows Technology Co., Ltd. combines research and development, structural design, precision forming, laser welding, quality inspection, and automated packaging in an integrated production system. Its facilities, management certifications, engineering team, and specialized equipment support consistent manufacturing across gas connectors, plumbing pipes, water liners, metal hoses, and compensators.

Product Overview

The DN10 stainless steel whistle-free gas connector is a flexible metal hose assembly intended for gas pipeline connections and gas equipment installation. The connector uses 304 stainless steel as its primary hose material. This stainless steel grade is widely recognized for its corrosion resistance, strength, formability, and suitability for many indoor and protected installation environments.

The 0.2 millimeter wall thickness is engineered to support the connector’s flexible form while retaining sufficient structural stability for normal connection applications. A flexible metal hose must be capable of bending during installation without becoming excessively difficult to handle. At the same time, it must resist deformation, fatigue, and damage when correctly installed. The product’s corrugated stainless steel body is designed to provide this balance.

The “whistle-free” structure is an important functional feature. Gas flowing through a connector can sometimes produce audible turbulence, vibration, or high-frequency noise, particularly when the internal passage, fittings, or installation conditions create local airflow disturbances. By optimizing the flow path and connector structure, the whistle-free design helps reduce unwanted sound. This can be especially valuable in kitchens, utility rooms, heating equipment areas, and other occupied spaces where continuous or intermittent gas flow noise may be noticeable.

The connector is designed around a 5/8-18UNF flare nut interface. Several adapter specifications are available to support different connection arrangements. These include 5/8 by 3/8 male with 1/4 female, 5/8 by 3/8 female, 5/8 by 1/2 male with 3/8 female, and 5/8 by 1/2 female configurations. The available options simplify the process of matching a gas appliance, valve, pipe, or transition fitting with the connector assembly.

Advantages of 304 Stainless Steel Construction

Material selection is one of the most important factors in flexible gas connector performance. The connector’s 304 stainless steel body provides a durable foundation for use in environments where moisture, temperature changes, cleaning products, and general atmospheric exposure may affect less resistant materials.

Stainless steel naturally forms a passive protective layer on its surface. This layer helps reduce the progression of corrosion when the material is exposed to ordinary atmospheric conditions. In a gas connection application, corrosion resistance is important because surface deterioration can affect flexibility, appearance, fitting integrity, and long-term service reliability.

Compared with ordinary carbon steel tubing, 304 stainless steel offers stronger resistance to rust under many common indoor conditions. Compared with some flexible polymer hoses, stainless steel provides a metal barrier with greater resistance to heat, mechanical contact, abrasion, and accidental compression. The selection of stainless steel therefore gives the product a strong position in applications where long-term durability and clean appearance are priorities.

304 stainless steel is also well suited to forming and welding processes. This is particularly important for corrugated bellows and flexible metal hoses, which require controlled shaping and secure joining. Advanced forming equipment can produce consistent corrugation geometry, while laser welding technology can create precise, narrow weld zones with limited heat-affected areas when the process is correctly controlled.

The stainless steel body is not intended to eliminate the need for correct installation. It should not be deliberately crushed, twisted, sharply kinked, used as a structural support, or installed in a way that creates continuous stress. Proper routing and adherence to the relevant local gas installation requirements remain essential. The benefit of the material is that, within its intended operating conditions, it provides a robust and corrosion-resistant flexible connection.

Whistle-Free Design and Acoustic Comfort

Noise reduction is an increasingly valuable feature in modern gas connection products. A connector may be technically functional while still producing an irritating sound during operation. Whistling can result from air or gas turbulence, pressure changes, edge effects near fittings, or an internal geometry that creates resonance. In residential settings, even moderate noise can become noticeable because kitchens, heating rooms, and utility areas are often close to living spaces.

The whistle-free design of this connector is intended to reduce the likelihood of these unwanted acoustic effects. The structure supports smoother gas movement through the connector and its fittings. Reduced turbulence may also help create a more comfortable acoustic environment around connected appliances.

Acoustic performance depends on the complete installation, not only on the connector. Gas type, supply pressure, flow rate, appliance demand, valve design, pipe routing, adapter selection, and system cleanliness can all influence sound. Nevertheless, incorporating a whistle-reduction design into the connector gives installers and equipment manufacturers a practical way to address one possible source of noise at the connection point.

This feature can be especially useful in residential cooking equipment, water heaters, heating appliances, and other applications where users expect quiet operation. It may also benefit commercial installations in offices, hospitality spaces, healthcare environments, and retail locations where background mechanical noise should be minimized.

DN10 Stainless Steel Whistle Free Gas Connector

Flexible Lengths for Efficient Installation

The product is available in seven standard lengths: 12, 18, 24, 36, 48, 60, and 72 inches. This range gives installers the ability to select a connector that is appropriate for the distance between the gas supply point and the appliance or equipment inlet.

Shorter lengths are useful where the connection point is close to the appliance and a compact routing path is preferred. Longer lengths can be selected when the appliance must be positioned farther from a valve, wall outlet, manifold, or fixed pipe. Using an appropriate length can reduce unnecessary joints, avoid awkward routing, and improve the overall appearance of the installation.

Choosing the correct length is important. A connector that is too short may be forced into an excessive bend or placed under tensile stress. A connector that is excessively long may create unnecessary loops, contact surrounding surfaces, or be more difficult to support and inspect. The availability of multiple standard lengths makes it easier to approach the required dimension without relying on an unsuitable workaround.

Flexibility is particularly valuable when equipment must be moved for cleaning, maintenance, inspection, or replacement. A properly selected flexible connector can accommodate normal positioning adjustments while maintaining the connection between the fixed gas supply and the appliance. The connector should still be routed with smooth bends and should not be repeatedly flexed beyond its intended range.

For commercial and project applications, the standard length range can also simplify purchasing and inventory management. Distributors and installers can stock common lengths while selecting suitable adapter configurations for different equipment interfaces. This modular approach may reduce the number of completely different connector products required for routine installations.

Connection Compatibility and Adapter Options

Gas systems frequently include components made by different manufacturers. Appliance inlets, shutoff valves, pipe transitions, and existing connection points may not all use the same nominal size or gender. The DN10 connector addresses this practical issue through its range of adapter specifications.

The available options include a 5/8 by 3/8 male connection with a 1/4 female transition, a 5/8 by 3/8 female connection, a 5/8 by 1/2 male connection with a 3/8 female transition, and a 5/8 by 1/2 female connection. These combinations provide flexibility when adapting between different pipe sizes or fitting arrangements.

Connection compatibility must always be verified before installation. Nominal size alone does not guarantee that two fittings are interchangeable. Thread form, thread standard, gender, sealing method, pressure rating, gas type, and applicable regional requirements must be checked. The 5/8-18UNF flare nut provides a defined interface, but the complete assembly must use compatible mating components.

The hard sealing design is intended to create a dependable seal when the correct fitting surfaces are properly aligned and tightened according to suitable installation practice. A hard seal is different from relying solely on soft tape or an improvised sealing compound. The sealing surfaces and fitting geometry must remain clean, undamaged, and correctly engaged.

Installers should never force mismatched threads or use a connector as a substitute for a required regulator, shutoff valve, pressure-control device, or approved transition fitting. The connector is a connection component, not a replacement for other safety equipment in a gas system.

Hard Sealing and Leak Prevention

Gas leakage prevention is the primary performance requirement for any gas connector. The product’s hard sealing form is designed to support a reliable connection between the flare nut, adapter, and mating fitting. When the components are correctly matched and assembled, the sealing interface can provide a stable barrier against gas escape.

Hard sealing systems offer several practical advantages. They can provide a clearly defined contact area, reduce reliance on excessive thread sealant, and support repeatable assembly when fitting dimensions and installation procedures are controlled. They also make it easier for trained installers to inspect the connection for correct seating and visible damage.

Sealing reliability depends on more than the seal design. The mating surfaces must be free of dirt, metal chips, oil contamination, and scratches. The connector must be aligned without side loading. The fitting should be tightened using the appropriate method and tools, avoiding both under-tightening and excessive force. Over-tightening can damage threads, deform sealing surfaces, or place unnecessary stress on the connector assembly.

After installation, the complete connection should be tested using a suitable approved leak-detection method. Open flames must never be used to check for gas leakage. If a leak is detected, the gas supply should be isolated and the connection inspected by a qualified professional. Local regulations and gas safety procedures should always take priority over general product information.

The use of brass or carbon steel nut options allows the connector to be configured for different purchasing, compatibility, and application preferences. Brass is often selected for its corrosion resistance and machinability, while carbon steel may be chosen for specific cost, strength, or system requirements. The appropriate nut material should be selected according to the surrounding environment and the complete connection specification.

Finish Options and Product Appearance

The connector is available in stainless steel and black finishes. The stainless steel finish highlights the metallic construction and can coordinate with exposed kitchen, heating, or utility equipment. The black finish provides a more subdued appearance and may better match dark appliances, cabinets, protective covers, or industrial equipment.

Finish selection is primarily an aesthetic and application choice, although the installation environment should always be considered. The surface should be protected from aggressive chemicals, unnecessary abrasion, and conditions outside the product’s intended application range. A clean and well-maintained finish can support long-term appearance while making surface damage easier to identify during inspection.

A professional appearance is not merely cosmetic. In visible installations, an orderly connector with an appropriate length and finish can improve the perceived quality of the complete system. Clean routing, suitable support, accessible shutoff components, and clear inspection access remain more important than appearance alone, but finish options allow the connector to integrate more effectively with different equipment designs.

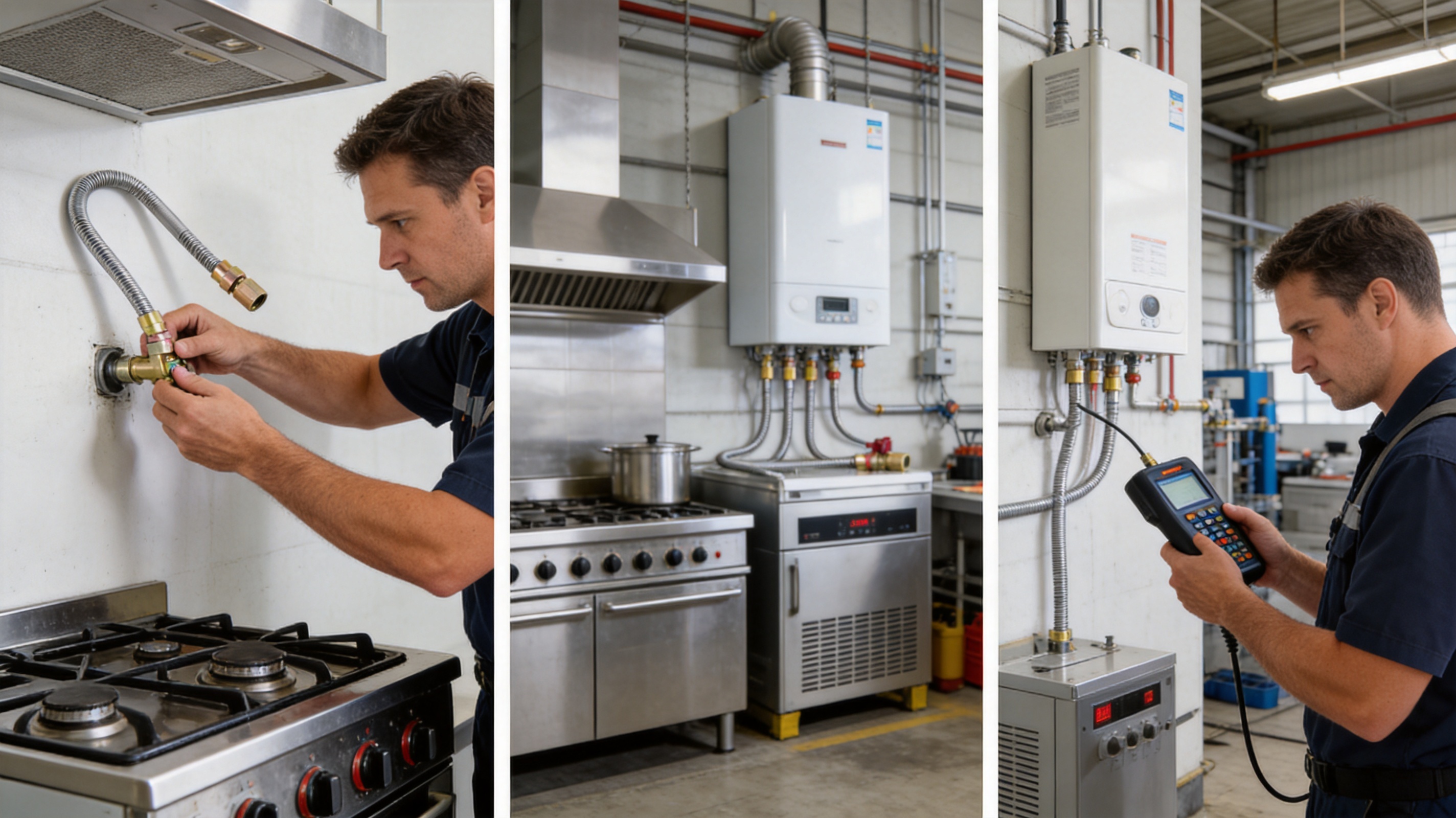

Applications in Residential and Commercial Systems

The DN10 stainless steel whistle-free gas connector is suitable for a range of gas connection scenarios when the selected configuration matches the local code, equipment requirements, pressure conditions, and installation environment.

In residential kitchens, the connector can be used to connect compatible gas cooking appliances to a fixed supply point. Its flexible structure helps accommodate the limited space commonly found behind or below cookers and other appliances. The whistle-free feature may contribute to a quieter kitchen environment, while the stainless steel body provides a clean and durable connection appearance.

For water heaters and heating equipment, flexible routing can simplify the connection between a fixed gas line and an appliance inlet. The range of lengths allows the installer to avoid excessive bending or unnecessary extension. The connector may also be useful in utility rooms where equipment access is needed for servicing.

In commercial kitchens, restaurants, hospitality facilities, and food-service spaces, gas equipment may be arranged in compact but frequently serviced areas. A flexible connector can help accommodate equipment positioning, provided that the connector is installed according to the relevant commercial gas requirements and is protected from heat, impact, movement, and chemical exposure.

Light industrial and building-service applications may also benefit from flexible metal connections. Heating equipment, HVAC-related gas appliances, and specialized machinery can require a flexible transition between rigid piping and a vibrating or movable unit. The connector’s suitability must be evaluated against pressure, temperature, movement, vibration, and certification requirements for the specific installation.

The product should not automatically be treated as suitable for every gas, pressure, temperature, outdoor, buried, marine, or high-vibration application. Project engineers and qualified installers should confirm the complete technical suitability before specification.

Advantages Compared with Less Specialized Connectors

The DN10 connector offers several advantages compared with basic flexible tubing or general-purpose connection products. Its 304 stainless steel construction provides stronger resistance to corrosion and mechanical damage than many conventional polymer hoses. Its corrugated form offers installation flexibility without requiring the connector to be bent as sharply as a rigid tube.

The whistle-free structure creates an additional functional advantage over connectors designed only for basic flow conveyance. Noise reduction may improve comfort in occupied environments and can help equipment appear more refined during operation.

The range of lengths and adapters is another competitive advantage. A product available in only one length or one fitting configuration may require additional transitions, extensions, or inventory items. By offering seven lengths and multiple adapter arrangements, this connector can help simplify selection and reduce installation complexity.

The hard sealing design is also significant. A clearly defined sealing structure can provide greater predictability than improvised sealing methods, especially when the connector is installed by trained personnel using compatible fittings. The availability of brass and carbon steel nut options further supports configuration flexibility.

Compared with rigid metal pipe, the flexible connector can reduce the need for precise field alignment and may shorten installation time in confined areas. Compared with a low-cost generic hose, the stainless steel construction, controlled manufacturing process, defined connection interface, and specialized noise-reduction design provide a more application-focused solution.

These advantages should be evaluated as part of the complete system rather than viewed as a substitute for compliance. A connector’s quality is most valuable when combined with correct sizing, approved equipment, proper installation, pressure testing, and regular inspection.

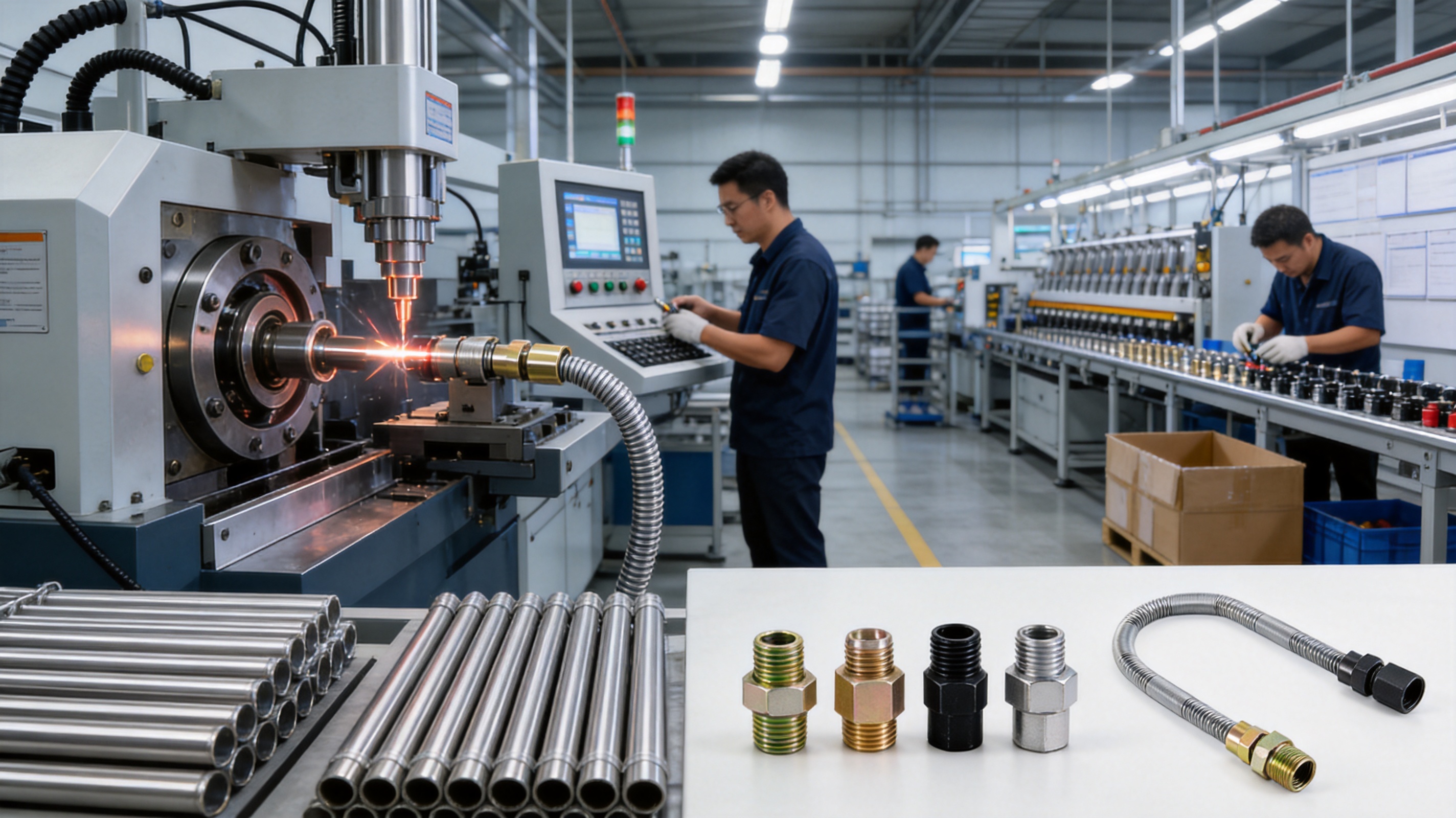

Advanced Manufacturing Capabilities

The performance of a stainless steel bellows connector depends heavily on manufacturing consistency. Corrugation depth, pitch, wall thickness, weld quality, fitting alignment, thread accuracy, and sealing surface condition must remain within controlled limits. Small variations in these areas can influence flexibility, fatigue resistance, connection quality, and leakage performance.

Haoyin (Ningbo) Bellows Technology Co., Ltd. operates a production system focused on stainless steel bellows and flexible connection products. The company integrates product research and development, design, manufacturing, testing, sales, and after-sales support. This full-process structure allows technical knowledge from production and field applications to inform subsequent product improvement.

The company has a standardized workshop area of approximately 18,000 square meters across a site covering about 35 mu. This manufacturing scale supports organized production flow, dedicated process areas, equipment deployment, materials management, and quality control. A structured facility is particularly important for products that require multiple operations, including forming, welding, fitting assembly, inspection, and packaging.

Laser welding machines are among the advanced manufacturing resources used in the production system. Laser welding can provide a concentrated heat source and controlled weld formation. For thin-wall stainless steel components, process control is essential because excessive heat may cause distortion, discoloration, burn-through, or undesirable changes in the material. Properly managed laser welding supports repeatable and precise joining.

CNC forming machines are used to produce controlled bellows and corrugated structures. Computer numerical control can improve repeatability across production batches by maintaining programmed forming parameters. Consistent geometry helps ensure that connectors have predictable flexibility and fit within the intended assembly dimensions.

The company also uses COSMO equipment, eddy current flaw detectors, and automatic packaging systems. Eddy current inspection is valuable for identifying certain surface or subsurface discontinuities in conductive metal components without destroying the product. Automated packaging helps protect finished connectors from handling damage, contamination, and mix-ups during storage and shipment.

Quality Management and Process Control

Quality management begins with raw material selection. Stainless steel grade, wall thickness, surface condition, and material traceability all influence final product performance. Controlling incoming materials helps prevent inconsistencies from entering the production process.

During structural design, engineers must consider flexibility, connection geometry, sealing behavior, installation requirements, flow characteristics, and manufacturing feasibility. A successful connector design is not simply a thin metal tube. It is an engineered assembly in which the hose body, fittings, adapters, nuts, seal interfaces, and finish must work together.

Manufacturing control continues through forming and welding. Equipment parameters, tooling condition, production speed, operator procedures, and in-process inspection can influence the quality of corrugations and joints. Maintaining stable production conditions helps reduce variation between individual connectors.

Performance testing provides another layer of protection. Depending on the applicable product specification and market requirement, testing may include dimensional verification, visual inspection, leak testing, pressure-related evaluation, weld inspection, flexibility assessment, and fitting verification. The exact tests should be determined by the product design, customer requirements, and applicable regulations.

Haoyin reports management system certifications including ISO9001, ISO14001, and ISO45001. ISO9001 relates to quality management, ISO14001 relates to environmental management, and ISO45001 relates to occupational health and safety management. These systems support organized procedures, documented responsibilities, process monitoring, continual improvement, environmental awareness, and workplace safety management.

The company also identifies itself as a National High-tech Enterprise and Green Factory. These designations reflect an emphasis on technical development, manufacturing capability, environmental responsibility, and ongoing improvement. For customers evaluating a long-term supplier, such organizational capabilities can be as important as the specifications of an individual connector.

Research and Development Strength

Flexible connection products must respond to changing requirements in safety, installation efficiency, noise control, material performance, environmental responsibility, and application diversity. A professional research and development team can help transform these requirements into practical product features.

The company’s research and development activities cover stainless steel bellows and flexible connection solutions for gas, plumbing, heating, healthcare, building heating, industrial HVAC, and related fields. Experience across several application sectors can support broader design knowledge, because each field presents different requirements for flexibility, cleanliness, corrosion resistance, temperature, pressure, vibration, and installation access.

Product development can include material evaluation, corrugation design, fitting optimization, seal structure improvement, adapter development, noise reduction, production efficiency, and inspection technology. The whistle-free gas connector demonstrates how a traditional flexible connection can be refined to address both functional and user comfort requirements.

Research and development also contributes to customization. Different markets may require particular thread forms, lengths, surface finishes, fitting materials, packaging formats, or inspection documentation. A manufacturer with in-house technical resources is better positioned to review these requirements and develop practical solutions than a company that only resells standard components.

Installation Considerations

Installation should be performed by a qualified professional familiar with gas systems and local regulations. Before installation, the connector, fittings, adapters, sealing surfaces, and threads should be inspected for visible damage, contamination, or incorrect specifications.

The installer should confirm the gas type, operating pressure, temperature range, connector length, adapter configuration, thread compatibility, and required approvals. The selected connector must be suitable for the appliance and the supply system. If any specification is unclear, installation should stop until the appropriate technical information is confirmed.

The connector should be routed using smooth bends. Sharp kinks, twisting, crushing, dragging across rough surfaces, and contact with sharp edges should be avoided. The connector should not be used to support the weight of an appliance or to compensate for poor alignment between fixed piping and equipment.

Heat exposure must also be controlled. The connector should be kept away from direct flame, excessively hot surfaces, and areas where radiant heat may exceed the product’s intended limits. If the appliance produces significant heat near the connection point, a suitable protective arrangement should be evaluated by a qualified installer.

After assembly, the connection should be checked for correct seating and tightening. The gas supply should be restored gradually, and the complete connection should be tested with an approved leak-detection procedure. The appliance should not be placed into service if any leakage, abnormal odor, deformation, or unusual sound is detected.

After installation, the connector should remain accessible for inspection. It should not be concealed behind permanent construction unless the applicable regulations specifically allow that arrangement and provide suitable access. Periodic inspection can help identify corrosion, abrasion, discoloration, deformation, fitting damage, or other signs that service may be required.

Maintenance and Service Life

Stainless steel provides strong durability, but no flexible connector is maintenance-free under every condition. Inspection frequency should reflect the installation environment, equipment movement, exposure to chemicals, temperature, vibration, and local safety requirements.

During inspection, users or service personnel should look for visible dents, sharp bends, deep scratches, corrosion spots, loose fittings, damaged threads, discoloration caused by overheating, and contact with abrasive surfaces. A connector that has been crushed, stretched, twisted, or exposed to fire should be replaced rather than returned to service without professional evaluation.

Cleaning should be performed with methods appropriate for stainless steel and the surrounding installation. Aggressive chemicals, abrasive tools, and chlorine-rich substances may damage the surface or promote corrosion under certain conditions. The connector should not be painted, coated, drilled, clamped, or modified without technical approval.

Flexible connectors are consumable safety components in many installations. Even when the exterior appears acceptable, replacement may be required by local codes, equipment manufacturers, building operators, or scheduled maintenance programs. The connector’s service life depends on actual operating conditions and should not be assumed solely from the material description.

Specification Selection Guide

Choosing the correct configuration begins with the interface. The installer should identify the appliance inlet and the fixed supply connection, including thread type, nominal size, gender, sealing method, and any required adapter. The 5/8-18UNF flare nut and available adapter options should then be matched to the complete system.

The next consideration is length. The ideal length is long enough to create a smooth, relaxed route but not so long that it forms unnecessary loops. Measurements should account for the connector’s required bend radius, appliance movement, service access, and the position of nearby surfaces.

Material and finish selection should reflect the environment. 304 stainless steel is suitable for many indoor and protected applications, while the nut material can be selected as brass or carbon steel according to the project specification. Stainless steel and black finishes offer different visual results.

Finally, the purchaser should confirm documentation requirements. Depending on the destination market, the project may require material records, inspection reports, pressure or leak test information, management system documentation, packaging labels, or compliance evidence. Clear communication before production helps avoid delays and ensures that the delivered configuration matches the installation requirement.

Why Choose an Integrated Manufacturer

Buying from an integrated manufacturer can provide advantages beyond the immediate product specification. When research, design, production, inspection, and after-sales support are managed within one organization, technical questions can be addressed more directly. This can be valuable when a project involves special lengths, adapter combinations, packaging requirements, or application concerns.

Integrated manufacturing also improves process visibility. The supplier can connect incoming material records with forming, welding, inspection, assembly, and shipment procedures. This traceability supports more effective quality investigation if a question arises after delivery.

Haoyin’s product portfolio includes gas connectors, plumbing pipes and water liners, metal hoses, and compensators. These products share technical foundations in bellows design, metal forming, welding, flexibility, sealing, and quality inspection. Experience across related products can strengthen the company’s ability to understand complete flexible connection systems rather than treating each connector as an isolated item.

The company’s standardized workshops and specialized equipment support repeatable production at commercial scale. Laser welding, CNC forming, eddy current inspection, and automatic packaging each address a different stage of the quality chain. Together, these capabilities help create a more controlled path from raw material to finished product.

Environmental and occupational management systems also matter for long-term supplier evaluation. ISO14001 and ISO45001 indicate structured attention to environmental management and workplace health and safety, while ISO9001 supports quality management procedures. These systems do not replace product-specific verification, but they provide an organizational framework for continual improvement.

Q&A: Product and Application Questions

What is the primary material of the connector?

The primary hose material is 304 stainless steel. The product has a stated wall thickness of 0.2 millimeters. The nuts are available in brass or carbon steel, depending on the selected configuration.

What does whistle-free mean?

Whistle-free refers to a structural design intended to reduce airflow turbulence and the associated whistling or high-frequency noise that may occur during gas flow. Actual sound levels can also be affected by system pressure, flow rate, appliance design, valves, fittings, and installation routing.

Which flare nut connection is used?

The connector uses a 5/8-18UNF flare nut. The complete installation must still be checked for matching thread form, sealing method, size, and compatibility with the mating fitting.

What lengths are available?

Standard lengths are 12, 18, 24, 36, 48, 60, and 72 inches. The most appropriate length is the one that permits smooth routing without excessive slack, tension, twisting, or sharp bending.

Which adapter options are offered?

The listed adapter configurations include 5/8 by 3/8 male with 1/4 female, 5/8 by 3/8 female, 5/8 by 1/2 male with 3/8 female, and 5/8 by 1/2 female. Selection should be based on the actual equipment and supply interfaces.

Is the connector suitable for every gas installation?

No product should be assumed suitable for every installation. Gas type, pressure, temperature, local code, appliance requirements, environmental exposure, movement, and certification requirements must be confirmed by a qualified professional before use.

Can the connector be sharply bent to fit a small space?

No. The connector should be routed with smooth bends and must not be kinked, crushed, twisted, or forced into a shape that places excessive stress on the hose or fittings.

How should leakage be checked?

Leakage should be checked using an approved leak-detection method by a qualified installer. An open flame must never be used. If a leak or gas odor is detected, the supply should be isolated and the system inspected immediately.

What manufacturing equipment supports the product?

The manufacturer reports the use of laser welding machines, CNC forming machines, COSMO equipment, eddy current flaw detectors, and automatic packaging systems. These resources support forming accuracy, welding control, nondestructive inspection, and finished-product protection.

What management certifications does the manufacturer report?

The manufacturer reports ISO9001, ISO14001, and ISO45001 management system certifications. These correspond to quality, environmental, and occupational health and safety management systems.

Can special configurations be discussed for projects?

Project requirements such as length, adapter selection, nut material, finish, packaging, inspection documents, and order quantities can be reviewed with the manufacturer. Technical suitability should be confirmed before production and installation.

Conclusion

The DN10 stainless steel whistle-free gas connector is designed as a practical and refined solution for flexible gas connections. Its 304 stainless steel body, 0.2 millimeter wall thickness, defined 5/8-18UNF flare nut, hard sealing structure, multiple adapter choices, and seven standard lengths provide a versatile foundation for residential, commercial, and selected building-service applications.

Its main advantages over simpler connection products include corrosion-resistant metal construction, improved installation flexibility, a design intended to reduce airflow noise, multiple interface options, and choices in nut material and finish. These features can help installers create cleaner, quieter, and more adaptable gas connection assemblies when the product is correctly specified and installed.

Product performance is supported by the manufacturer’s broader capabilities in stainless steel bellows technology. Research and development, standardized workshops, CNC forming, laser welding, eddy current inspection, automatic packaging, and documented management systems contribute to a controlled manufacturing process. The company’s wider product range in gas, plumbing, heating, healthcare, HVAC, metal hose, and compensator applications further demonstrates its focus on flexible connection engineering.

As with every gas component, safe performance depends on system compatibility and professional installation. Correct sizing, suitable adapters, smooth routing, appropriate tightening, leak testing, inspection access, and compliance with applicable regulations are essential. When these requirements are observed, the DN10 stainless steel whistle-free gas connector can provide a durable, flexible, and comfortable connection solution for modern gas equipment installations.

References

1. Product specification information for the DN10 Stainless Steel Whistle-Free Gas Connector, including material, wall thickness, adapters, lengths, finishes, nut materials, and sealing form.

2. General technical principles for stainless steel bellows, corrugated metal hoses, flexible gas connectors, and flare-type connection assemblies.

3. ISO 9001, Quality Management Systems: Requirements.

4. ISO 14001, Environmental Management Systems: Requirements with Guidance for Use.

5. ISO 45001, Occupational Health and Safety Management Systems: Requirements with Guidance for Use.

6. General professional guidance for gas piping installation, leak detection, flexible connector routing, appliance connection, and maintenance inspection.

7. Manufacturer information concerning stainless steel bellows research and development, manufacturing facilities, quality management, inspection equipment, and product categories.
