DN20 Stainless Steel Whistle-Free Gas Connector: Durable, Quiet, and Flexible Gas Connection Technology

Modern gas systems require connection components that combine safety, durability, installation flexibility, and dependable long-term performance. A gas connector may appear to be a relatively small part of a residential, commercial, or industrial installation, but its influence on the overall system is significant. The connector must accommodate movement, tolerate pressure and temperature changes, resist corrosion, maintain a reliable seal, and support efficient installation. It should also operate quietly, particularly in kitchens, utility rooms, apartments, hotels, and other occupied environments.

The DN20 stainless steel whistle-free gas connector is designed to address these requirements through a combination of 304 stainless steel construction, a 0.25 mm pipe wall, compatible flare connections, hard sealing, and a noise-reducing internal structure. Its available lengths and adapter configurations make it suitable for a broad range of gas equipment and piping arrangements. At the same time, its stainless steel body provides a balance of strength, flexibility, corrosion resistance, and clean appearance.

This article examines the structure, materials, performance characteristics, connection options, manufacturing considerations, installation value, and application potential of the DN20 stainless steel whistle-free gas connector. It also explains how advanced production capabilities, quality management, testing systems, and engineering experience contribute to a more dependable finished product.

1. Understanding the DN20 Stainless Steel Whistle-Free Gas Connector

DN20 is a nominal size designation commonly associated with a gas connector intended for a connection system around the 20 mm nominal diameter class. The actual dimensions of a complete connector depend on its corrugated tube, flare nut, adapter, and end-fitting configuration. For this reason, installers should always confirm the technical drawing, connection standard, equipment interface, and local code requirements before selecting a connector.

The product is manufactured from 304 stainless steel and uses a pipe wall thickness of 0.25 mm. This material is widely recognized for its balance of corrosion resistance, mechanical performance, formability, and suitability for bellows and corrugated tube manufacturing. The stainless steel construction enables the connector to withstand the demanding conditions normally found around gas appliances, including humidity, temperature variation, cleaning chemicals, and occasional exposure to airborne contaminants.

The connector is equipped with a 1 1/8"-16UNF flare nut. Depending on the installation requirement, it can be supplied with different adapter configurations, including 1 1/8*3/4M(1/2F) and 1 1/8*3/4F. These configurations allow one basic connector design to serve multiple interface arrangements. Such flexibility is valuable for installers working with different appliance inlets, valves, regulators, and pipe-end standards.

The nut can be manufactured from brass or carbon steel. Both options can be selected according to project requirements, cost targets, compatibility considerations, and customer preferences. A hard sealing structure is used to create a dependable connection without relying solely on soft gasket compression. When installed correctly, the hard seal can provide stable sealing performance and reduce the risk of leakage caused by deterioration, displacement, or incorrect handling of a soft sealing element.

Another defining feature is the whistle-free design. Gas flow through a connector can generate turbulence, vibration, or high-frequency noise, especially when the gas velocity changes or when the connector is installed close to a regulator, valve, or appliance inlet. The whistle-free structure is intended to reduce airflow noise and create a quieter operating environment. This feature is especially useful in homes and commercial facilities where gas equipment is located near occupants.

DN20 Stainless Steel Whistle Free Gas Connector

2. Product Specifications at a Glance

The following table summarizes the principal specifications of the DN20 stainless steel whistle-free gas connector. Exact production details may vary according to the selected adapter, nut material, length, and customer requirements. Technical confirmation should be completed before mass production or installation.

The range of available lengths allows the connector to be selected according to the distance between the gas outlet and the appliance inlet. A short connector can reduce unnecessary loops in a compact installation, while a longer version can provide sufficient reach when the appliance must be moved for cleaning or service. Proper length selection is important because an excessively short connector may be placed under tension, while an excessively long connector may be bent improperly or create an avoidable obstruction.

3. Material Advantages of 304 Stainless Steel

3.1 Corrosion resistance

Gas connectors are often installed in locations where moisture, condensation, food residue, cleaning agents, and temperature variation are present. Ordinary unprotected materials may gradually corrode under these conditions. Corrosion can reduce wall thickness, affect the appearance of the product, and create weaknesses that compromise service life.

304 stainless steel offers strong general corrosion resistance for many indoor and sheltered applications. Its chromium content supports the formation of a passive protective layer on the metal surface. This layer helps limit the progression of ordinary atmospheric corrosion and allows the connector to retain its functional and visual qualities over time.

The use of stainless steel is particularly beneficial in kitchens, restaurants, hotels, residential utility areas, and building service spaces. Although no material is immune to every chemical environment, 304 stainless steel provides a practical and widely accepted choice for applications where cleanliness, durability, and resistance to humidity are important.

3.2 Mechanical balance

A gas connector must be flexible enough to accommodate installation movement, but it must also possess sufficient mechanical stability. If the tube is too rigid, installation becomes difficult and stress may be transferred to the appliance or valve. If it is too weak, the tube may be damaged by excessive bending, impact, vibration, or handling.

The 0.25 mm wall thickness provides a carefully balanced structure for a corrugated stainless steel tube. Corrugation increases flexibility while maintaining a continuous metallic barrier. The finished tube can be routed around common installation obstacles without requiring the large bending radius associated with rigid pipe. At the same time, the stainless steel wall provides a durable gas-tight path when the product is manufactured and installed correctly.

3.3 Clean and professional appearance

The natural stainless steel finish has both functional and aesthetic benefits. It presents a clean, neutral appearance that fits modern kitchen equipment, heating systems, and utility installations. Unlike painted or coated surfaces, the finish does not depend on a decorative coating to provide its basic appearance. It is also easy to inspect visually for dents, contamination, or installation damage.

A clean metallic finish can support professional installation standards. In visible applications, the connector looks compatible with stainless steel appliances and other metal piping components. In concealed or semi-concealed locations, its appearance remains a useful indicator of product quality and manufacturing consistency.

4. How the Whistle-Free Design Improves User Comfort

Noise is an often-overlooked issue in gas connection systems. When gas passes through a narrow passage, a fitting, a valve, or a corrugated structure, changes in velocity can produce turbulence. Depending on the flow rate and system pressure, this turbulence may generate a humming, hissing, or whistling sound. In a large industrial plant, such sounds may be accepted as part of the operating environment. In a home, hotel room, restaurant, or office building, however, persistent noise can be distracting and uncomfortable.

The whistle-free gas connector is designed to reduce the conditions that encourage high-frequency airflow noise. Its internal flow arrangement and connection structure help manage gas movement through the connector. The objective is not simply to make the product quieter in an empty laboratory, but to improve the acoustic experience of a functioning gas installation when the connector is used with compatible equipment and within its intended operating conditions.

Reduced airflow noise can offer several practical benefits. First, it improves comfort for occupants who spend time near the appliance. Second, it can help users distinguish abnormal sounds from normal operating noise. A quiet connector makes it easier to notice changes in the system, such as unusual vibration, a damaged fitting, or a problem with an appliance valve. Third, lower noise contributes to a more refined impression of the entire installation.

It is important to understand that connector noise can also be influenced by factors outside the connector itself. Gas pressure, regulator design, appliance burner geometry, pipe diameter, flow rate, fitting alignment, and installation stress may all affect acoustic performance. Therefore, the whistle-free structure should be considered an important noise-reduction feature rather than a guarantee that every possible system sound will be eliminated.

5. Connection Design and Sealing Reliability

5.1 Flare nut configuration

The 1 1/8"-16UNF flare nut provides a defined threaded interface for the connector assembly. A standardized thread helps support compatibility with corresponding adapters and equipment fittings. Before installation, the installer should verify thread size, thread type, seating geometry, and the matching connection standard. Similar-looking threads are not necessarily interchangeable, and forcing an incompatible fitting can damage the thread or create an unsafe seal.

The flare nut also supports a more controlled installation process. The nut is tightened against the corresponding flare or sealing surface, allowing the installer to establish a stable mechanical connection. Correct alignment is essential. The connector should not be forced into position by using the nut to pull misaligned components together.

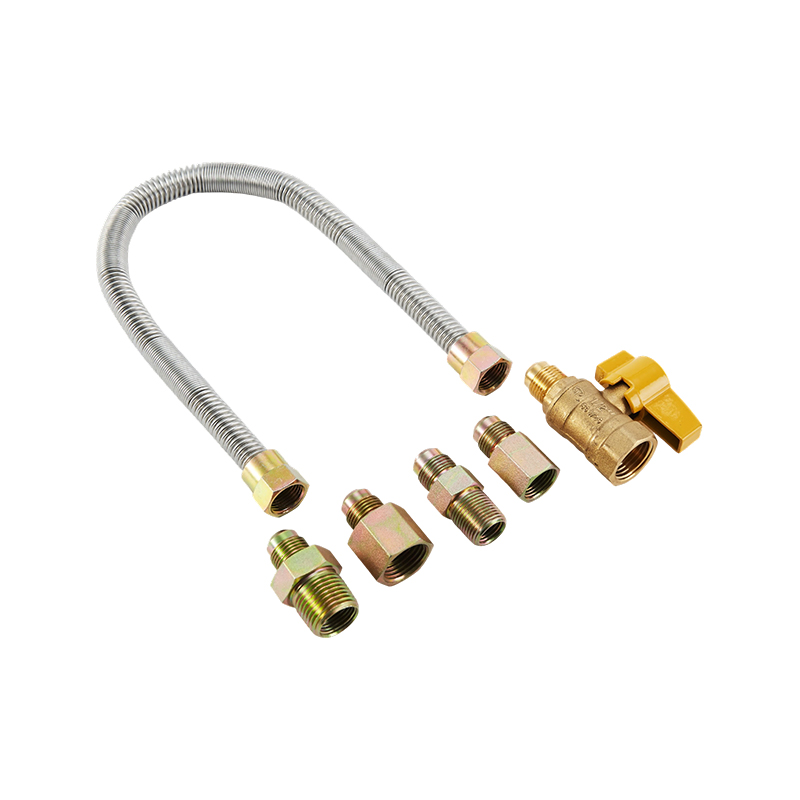

5.2 Adapter choices

The available 1 1/8*3/4M(1/2F) and 1 1/8*3/4F adapters expand the application range of the product. One configuration combines a 3/4 male interface with a 1/2 female interface, while the other provides a 3/4 female interface. These options allow the same general connector platform to adapt to different appliance or pipeline connection arrangements.

Adapter selection should be based on the actual equipment interface rather than on visual similarity. The installer should confirm the nominal size, gender, thread profile, sealing method, and applicable local standard. Where a transition between different sizes is required, an appropriate factory-supplied adapter is preferable to an improvised combination of unverified fittings.

5.3 Hard sealing

The hard sealing method provides a metal-to-metal or rigid-surface sealing approach designed for dependable service. Compared with a soft seal that may be more sensitive to aging, compression set, chemical exposure, or installation position, a hard seal can offer stable performance when the mating surfaces are correctly manufactured and properly tightened.

Hard sealing does not eliminate the need for careful installation. Sealing surfaces must be clean, undamaged, and correctly aligned. The specified tightening procedure should be followed, and the connector should be checked for leakage after installation. Excessive tightening can deform a fitting or damage a thread, while insufficient tightening can prevent the sealing surfaces from seating properly.

6. Available Lengths and Installation Flexibility

The connector is available in lengths of 12, 18, 24, 36, 48, 60, and 72 inches. This range supports compact and extended installation layouts. The correct length can improve both safety and appearance by allowing the connector to reach the appliance without unnecessary strain or excessive slack.

A 12-inch or 18-inch version may be suitable where the gas outlet and appliance inlet are positioned close together. A 24-inch or 36-inch connector can accommodate a typical kitchen or utility-room arrangement. Longer 48-inch, 60-inch, or 72-inch versions may be useful where equipment must be positioned farther from the gas outlet or where additional movement is required for servicing.

Length should never be used to compensate for poor planning. A connector should not be stretched, twisted, sharply folded, or routed through a location where it may be crushed. It should also be kept away from excessive heat, sharp edges, moving parts, and areas where it could be used as a support or handle. The flexible structure is intended to simplify connection, not to replace proper system layout.

Correct routing preserves the corrugated tube profile and reduces mechanical stress. A gentle bend is generally preferable to a tight bend. The connector should be allowed to follow a natural path between the fixed gas outlet and the appliance connection. If the appliance is movable, the connector should be arranged so that normal movement does not cause repeated sharp flexing at one point.

7. Advantages Compared with Conventional Connection Products

7.1 Compared with rigid metal pipe

Rigid metal pipe can provide a strong and permanent gas route, but it often requires precise measurement, threading, cutting, alignment, and additional fittings. Installation may become time-consuming when the appliance position is difficult to access or when the outlet and inlet are not perfectly aligned.

The flexible stainless steel connector simplifies the final connection between fixed piping and equipment. It can accommodate moderate positional variation and reduce the number of rigid fittings needed. This may shorten installation time and make appliance replacement or maintenance more convenient. The connector is not a replacement for all rigid piping, but it is an efficient complement to a properly designed gas distribution system.

7.2 Compared with low-cost non-metallic hoses

Some low-cost hoses may be flexible and easy to install, but their resistance to heat, aging, abrasion, chemical exposure, and mechanical damage can vary considerably according to their material and construction. Stainless steel offers a metallic barrier and strong resistance to many common environmental conditions.

The 304 stainless steel tube also provides a more robust appearance and a higher level of dimensional stability than many basic flexible hose products. For applications where long-term reliability and professional presentation matter, a stainless steel connector can offer a stronger value proposition than a product selected only on initial purchase price.

7.3 Compared with ordinary corrugated connectors

Ordinary corrugated stainless steel connectors may provide flexibility and corrosion resistance, but they may not include a structure specifically intended to reduce airflow noise. The whistle-free design adds a user-oriented performance benefit that is especially relevant to residential and hospitality applications.

In addition, the availability of multiple adapter specifications, brass or carbon steel nut options, several lengths, and hard sealing gives the product a broader configuration range. Buyers can select a connector according to the system interface instead of adapting the installation through multiple unrelated components.

7.4 Compared with poorly integrated fitting assemblies

An installation assembled from mismatched fittings can create unnecessary points of risk. Every additional joint may introduce another opportunity for misalignment, leakage, thread damage, or maintenance difficulty. A professionally manufactured connector assembly integrates the tube, nut, adapter, and sealing structure into a product intended to work as a coordinated unit.

Integrated production also supports more consistent dimensional control. When the components are designed and manufactured within a controlled process, the relationship between the tube end, fitting, nut, and sealing surface can be verified more systematically than in an improvised assembly.

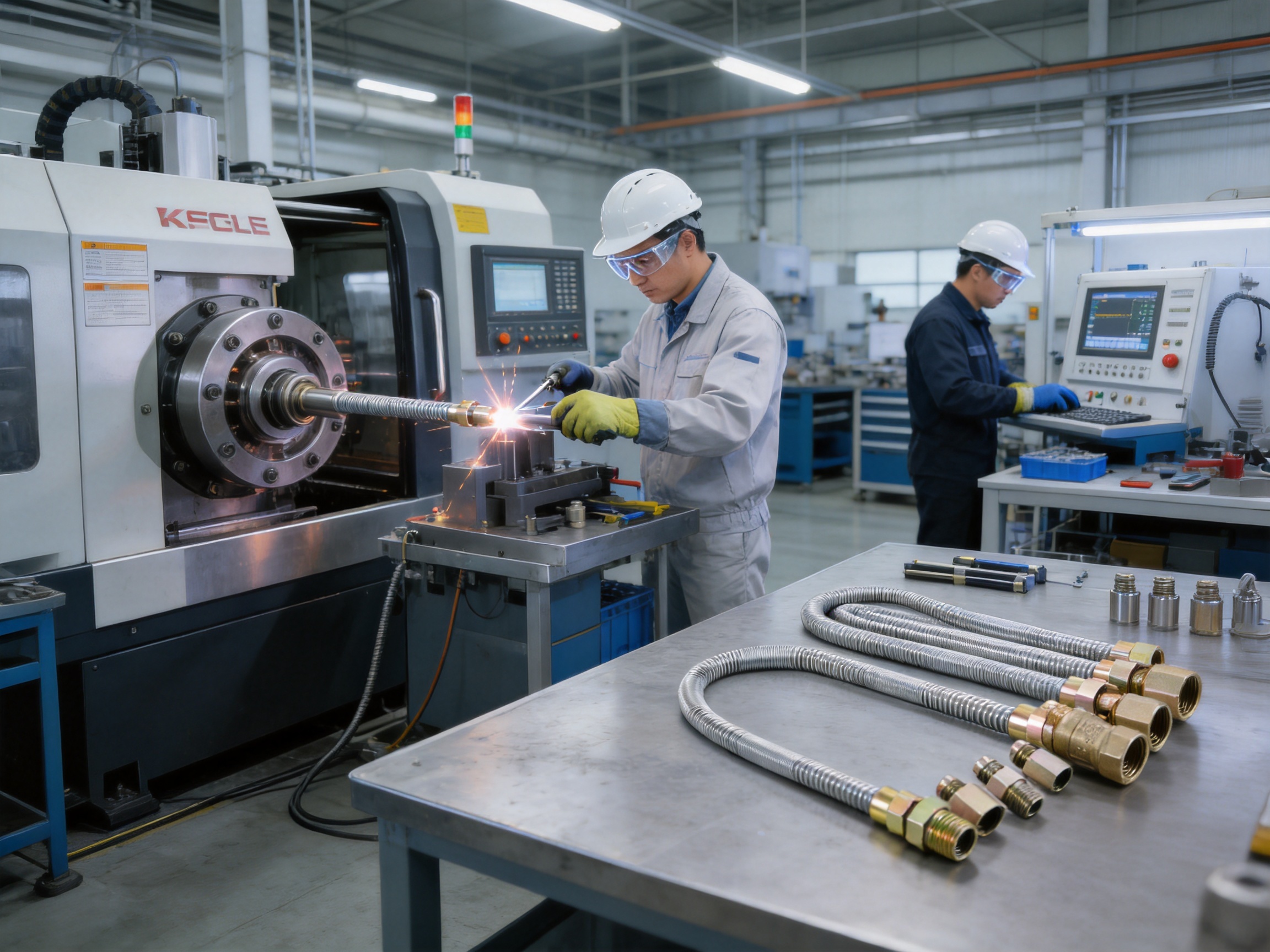

8. Manufacturing Process and Engineering Capabilities

The performance of a stainless steel gas connector depends not only on the selected raw material but also on the precision and consistency of the manufacturing process. A corrugated tube must be formed accurately, fittings must be joined securely, sealing surfaces must remain within dimensional tolerances, and the final assembly must pass appropriate inspections.

8.1 Raw material selection

Production begins with the selection and verification of 304 stainless steel strip or tube material. Material quality affects formability, surface condition, corrosion resistance, weldability, and finished-product stability. Controlled purchasing and incoming inspection help confirm that the material meets the required grade and thickness.

Material verification may include checking certificates, dimensions, surface condition, chemical composition, and mechanical properties. Consistent raw material helps reduce variation during forming and welding. It also supports reliable traceability when products are supplied for demanding construction, heating, plumbing, or gas applications.

8.2 Tube forming

The stainless steel strip is shaped into a tubular form through controlled forming operations. The process must maintain the specified wall thickness and create a uniform tube profile. Excessive deformation, surface scratches, or inconsistent edges can affect subsequent welding and corrugation operations.

After the basic tube is formed, corrugation creates the flexible bellows-like geometry. The corrugation depth, pitch, profile, and repeatability influence flexibility, pressure behavior, bending performance, and fatigue resistance. Advanced CNC forming machines can improve process control by maintaining consistent forming parameters across production batches.

8.3 Laser welding

Laser welding equipment can be used to create precise and concentrated welds in stainless steel components. Compared with less controlled welding methods, laser welding may reduce the heat-affected area, improve weld consistency, and support clean production of thin-wall components when properly calibrated.

Welding quality is central to gas connector safety. A weld must be continuous, strong, and free from defects that could create a leakage path. Welding parameters, material condition, joint preparation, machine calibration, and operator training all contribute to the final result. Weld inspection and leak testing provide additional safeguards against defects that may not be visible during a basic visual examination.

8.4 CNC forming and dimensional control

CNC forming equipment supports repeatable production of corrugated sections, end structures, and other geometrically sensitive components. Computer-controlled machinery helps maintain consistent dimensions and reduces variation caused by manual adjustment.

Dimensional consistency is important because the tube must fit correctly into the end fitting, and the completed assembly must connect smoothly with the flare nut and adapter. Even small deviations can affect sealing contact, insertion depth, bending behavior, or overall appearance. A controlled CNC process supports stable quality across different lengths and production orders.

8.5 Assembly and fitting installation

After tube forming and welding, the connector is assembled with its flare nut, adapter, and sealing components. Assembly procedures must control insertion depth, fitting position, nut placement, and the orientation of connection features. Automated or semi-automated packaging and assembly systems can improve productivity and reduce handling errors.

Different nut materials may be selected according to customer requirements. Brass offers good corrosion resistance and a familiar appearance in plumbing and gas connection applications. Carbon steel can provide a cost-effective alternative when appropriately protected and specified for the intended environment. Regardless of material, the nut must be dimensionally compatible with the flare and adapter system.

8.6 Testing and inspection

A professional connector manufacturer should use multiple inspection stages rather than relying on a single final check. Typical controls may include incoming material inspection, weld inspection, dimensional verification, surface examination, pressure testing, leak testing, and packaging inspection.

Eddy current flaw detection equipment can help identify certain discontinuities or irregularities in conductive materials. This type of non-destructive inspection can provide useful information about tube integrity and manufacturing consistency. It is most effective when integrated with other quality methods and interpreted by trained personnel.

Performance testing may include checking gas tightness, connection integrity, pressure behavior, flexibility, and resistance to repeated movement, depending on the product standard and customer specification. Test methods should be selected according to the intended application and applicable regulatory requirements.

9. Quality Management and Corporate Manufacturing Strength

The manufacturer behind this product specializes in the research, design, production, and sales of stainless steel bellows and flexible connection products. Its product portfolio includes gas connectors, plumbing pipes and water liners, metal hoses, and compensators. This product focus is important because bellows and flexible metal connection systems require specialized knowledge in material selection, forming, welding, sealing, testing, and application engineering.

The company operates standardized workshops covering approximately 18,000 square meters within an overall area of about 35 mu. The workshop environment and organized production layout support the separation of raw material handling, forming, welding, assembly, testing, and packaging operations. A structured production environment can improve process discipline and help limit cross-contamination, handling damage, and uncontrolled workflow changes.

Management systems certified to ISO9001, ISO14001, and ISO45001 provide a framework for quality management, environmental management, and occupational health and safety. These certifications do not replace product testing or engineering responsibility, but they demonstrate an organized approach to process control, documentation, risk management, corrective action, and continual improvement.

The company is also identified as a National High-tech Enterprise and Green Factory. These designations reflect an emphasis on technical development, efficient production, environmental responsibility, and modernization. For customers, such capabilities can be valuable when selecting a long-term manufacturing partner rather than purchasing from an unknown source with limited process transparency.

A full-process quality management system covers raw material selection, structural design, manufacturing, performance testing, and after-sales support. This approach recognizes that product quality is determined throughout the entire product life cycle. A connector cannot be made reliable only through final inspection if the initial material, design, forming, welding, or assembly process is not controlled.

The company has invested in laser welding machines, CNC forming machines, eddy current flaw detectors, COSMO equipment, and automatic packaging systems. Together, these resources support more consistent production and more efficient inspection. Advanced equipment is most valuable when it is combined with appropriate process parameters, trained personnel, preventive maintenance, and documented quality standards.

10. Application Areas

10.1 Residential kitchens

Residential kitchens often place gas appliances close to walls, cabinets, valves, and other fixtures. A flexible connector makes it easier to position the appliance while maintaining a suitable gas connection. The stainless steel finish complements modern kitchen equipment, and the whistle-free design can reduce unwanted operating noise in an occupied living space.

When used for a residential installation, the connector must be selected and installed according to local gas regulations. The appliance type, gas category, pressure, connection interface, ventilation requirements, and inspection procedures should all be considered. The product should not be modified, extended, or connected through incompatible fittings.

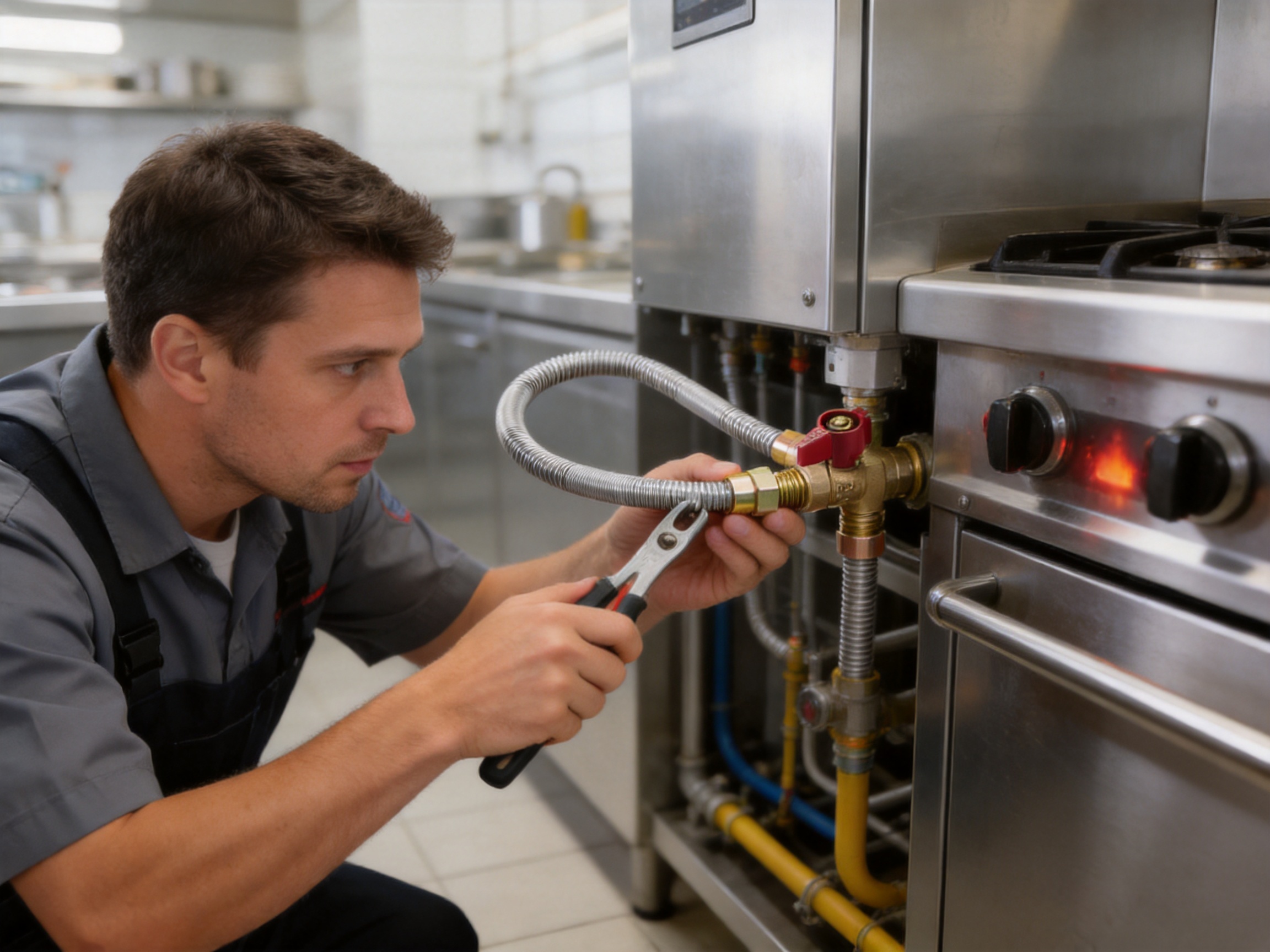

10.2 Restaurants and commercial kitchens

Commercial kitchens place high demands on equipment access, cleaning, heat management, and serviceability. Cooking appliances may need to be moved periodically for cleaning or maintenance, making a flexible connection particularly useful. Stainless steel is also well suited to environments where moisture, grease, detergents, and frequent cleaning are present.

Commercial installations may experience higher operating cycles and more frequent movement than residential systems. Appropriate length selection and correct routing are therefore essential. The connector should be protected from direct flame, excessive radiant heat, sharp equipment edges, and repeated dragging across the floor.

10.3 Heating equipment

Gas-fired heating appliances may require flexible connections to accommodate equipment alignment, vibration isolation, or service access. The connector can serve as a practical transition between fixed piping and a furnace, boiler, heater, or other compatible appliance.

Heating systems may experience repeated temperature changes during operation. Material selection, fitting integrity, and installation clearance are important factors. The connector should be used only within its approved temperature and pressure range and should be installed in accordance with the appliance manufacturer’s instructions.

10.4 Hospitality and public buildings

Hotels, schools, hospitals, and public buildings often value both reliability and low operating noise. Gas equipment may be located near guest rooms, service corridors, food preparation areas, or occupied utility spaces. A connector designed to reduce airflow noise can contribute to a more comfortable environment when integrated into a properly designed system.

Large building projects also benefit from product consistency. Standardized lengths, adapter configurations, and quality documentation can simplify procurement and installation across multiple units. A manufacturer with organized production and testing capabilities can support repeat orders and project-based supply requirements.

10.5 Industrial and HVAC applications

Industrial HVAC and utility systems may use flexible metal connectors to accommodate vibration, thermal movement, or equipment alignment. The connector must be selected according to the specific medium, pressure, temperature, movement pattern, and applicable standard. The DN20 whistle-free gas connector is intended for compatible gas connection applications and should not automatically be used for every industrial fluid or service condition.

11. Installation Recommendations

Installation should be performed by qualified personnel familiar with gas systems and local regulations. Before beginning work, isolate the gas supply, verify the appliance and piping interfaces, inspect the connector, and confirm that the selected length and adapter configuration are correct.

The connector should be installed without twisting. Twisting can place torsional stress on the corrugations, fitting, and sealing surfaces. The tube should follow a smooth route with no sharp kinks or flattened sections. It should not be installed under tension or forced into a radius smaller than the manufacturer’s recommended minimum.

Both connection surfaces should be clean and free from dirt, metal chips, oil, or damage. The flare nut should be started by hand to prevent cross-threading. Tools should be applied only to the designated wrench surfaces. The flexible tube itself should not be used as a lever during tightening.

After the connection is tightened according to the applicable specification, the system should undergo a suitable leak test. Leak detection must be performed with an approved method. An open flame must never be used to check for gas leakage. If leakage is found, the gas supply should remain isolated until the cause has been identified and corrected.

After commissioning, the connector should be visually inspected for contact with hot surfaces, sharp edges, moving components, or corrosive substances. The installation should allow reasonable access for future inspection and appliance servicing. Connectors should not be painted, pierced, clamped excessively, or used to support the weight of an appliance.

12. Maintenance and Service Life Considerations

Stainless steel construction can support long-term service, but no connector should be treated as maintenance-free. Periodic visual inspection is recommended, particularly in commercial kitchens, rental properties, industrial spaces, and locations exposed to moisture or cleaning chemicals.

Inspection should look for dents, severe bends, abrasion, corrosion staining, damaged threads, loose fittings, signs of overheating, and changes in the connector’s position. Any unusual smell, sound, or visible damage should be treated seriously. If a connector has been exposed to fire, impact, flooding, or chemical contamination, it should be assessed by qualified personnel before being returned to service.

The connector should not be repeatedly disconnected and reconnected unless the connection system is designed for that purpose and the manufacturer’s instructions permit it. Repeated handling can affect sealing surfaces and threads. When an appliance is replaced, the connector should be inspected carefully and replaced if its condition, compatibility, or service history is uncertain.

Cleaning should use methods compatible with stainless steel and the surrounding installation. Harsh chemicals containing aggressive chlorides or other corrosive substances may damage stainless steel under certain conditions. The connector should be kept free from accumulated grease and debris, while abrasive tools should be avoided if they could scratch or deform the surface.

13. Purchasing and Specification Guidance

Buyers should evaluate more than nominal size when selecting a gas connector. The connection thread, adapter configuration, overall length, nut material, sealing form, operating pressure, temperature range, installation environment, and applicable certification requirements should all be reviewed.

The 1 1/8"-16UNF flare nut must match the intended fitting. The 1 1/8*3/4M(1/2F) and 1 1/8*3/4F options should be chosen according to the actual equipment connection. Ordering the wrong adapter can lead to delays, additional fittings, or unsafe attempts to force compatibility during installation.

Length should be measured along the intended route rather than as a straight-line distance only. The selected length should provide enough reach for connection and reasonable appliance movement without leaving excessive loops. Project buyers may benefit from specifying exact lengths and adapter combinations in the purchase order to reduce site-level uncertainty.

For large projects, documentation may include product drawings, material information, inspection records, packaging details, and installation guidance. Consistent documentation supports contractor training, quality audits, and future replacement planning. A manufacturer with a complete production and after-sales system can provide greater support than a supplier that only offers a basic catalog description.

14. Why Manufacturing Integration Matters

Flexible gas connectors combine several disciplines in one compact product. The tube must be formed without damaging the stainless steel, the corrugation must provide controlled flexibility, the fitting must be joined securely, the nut must rotate and engage correctly, and the sealing surfaces must remain accurate. Each stage affects the next.

Manufacturing integration reduces the risk that components will be made to incompatible dimensions. It also makes it easier to trace process conditions and respond to customer feedback. When a manufacturer controls design, forming, welding, testing, packaging, and technical support, improvements can be introduced across the complete product rather than in only one isolated operation.

Research and development capability is equally important. Gas connection products must respond to changing appliance designs, building requirements, energy systems, and installation practices. An experienced technical team can evaluate new materials, revise forming profiles, improve noise reduction, optimize fittings, and develop configurations for different markets.

Advanced equipment such as laser welding machines and CNC forming systems provides the foundation for repeatability, but engineering judgment remains necessary. Production personnel must understand how wall thickness, weld energy, corrugation geometry, fitting design, and sealing pressure interact. The best results come from combining automated precision with qualified technical oversight.

15. Environmental and Operational Benefits

The stainless steel construction supports a durable product that can remain functional for an extended period when correctly selected and installed. Longer service life can reduce the frequency of replacement, transportation, packaging, and disposal. A durable connector can also reduce the disruption associated with repeated maintenance work.

Environmental management systems such as ISO14001 encourage manufacturers to monitor resource use, waste generation, emissions, and production impacts. A Green Factory approach further emphasizes cleaner manufacturing and more efficient facility operation. These efforts are increasingly important to customers seeking suppliers that align product quality with responsible production.

Automatic packaging systems can reduce handling errors and improve packaging consistency. Proper packaging protects connectors from scratches, deformation, contamination, and missing components during storage and transportation. Better packaging also supports more efficient warehouse management and reduces avoidable product damage before installation.

16. Safety Principles for Gas Connector Use

Gas systems require a higher level of care than ordinary water or air connections. The connector must be used only for the service for which it has been specified. It should not be substituted into an application involving a different gas, pressure, temperature, or chemical medium without technical confirmation.

Local building codes, gas regulations, appliance instructions, and inspection requirements take priority over general product information. A connector’s specifications alone do not determine whether it is approved for a particular installation. Qualified professionals should confirm all project requirements before installation.

Users should never attempt to repair a damaged corrugated tube with tape, clamps, solder, sealant, or other improvised methods. A damaged connector should be replaced with a suitable product. Modifying the tube, removing the flare nut, changing the adapter, or cutting the connector may invalidate its design and create a leakage hazard.

The whistle-free feature improves comfort, but sound reduction should not be used as a substitute for inspection. Any odor of gas, unexpected noise, visible damage, or change in appliance operation requires immediate attention. The gas supply should be managed according to local emergency procedures, and professional assistance should be obtained.

17. Frequently Asked Questions

Q1: What does DN20 mean in this product description?

DN20 is a nominal size designation for the connector category. It provides a general reference for system sizing, but the precise dimensions of the tube and end connections should be confirmed from the technical specification or drawing. The DN20 designation should not be used alone to determine compatibility.

Q2: What material is used for the connector tube?

The tube is made from 304 stainless steel with a wall thickness of 0.25 mm. This material offers a useful combination of corrosion resistance, formability, mechanical stability, and clean appearance for compatible gas connection applications.

Q3: What is the flare nut thread?

The connector uses a 1 1/8"-16UNF flare nut. The mating equipment or adapter must have the correct corresponding connection. Installers should verify the thread and sealing geometry before assembly.

Q4: Which adapter options are available?

The listed adapter options are 1 1/8*3/4M(1/2F) and 1 1/8*3/4F. The correct choice depends on the gas appliance inlet, valve, or piping interface. Buyers should specify the required configuration when ordering.

Q5: What lengths can be supplied?

Available lengths include 12, 18, 24, 36, 48, 60, and 72 inches. The most suitable length is the one that reaches the connection points without tension, twisting, sharp bending, or excessive slack.

Q6: What makes the connector whistle-free?

The connector incorporates a design intended to reduce turbulence-related airflow noise. Actual sound levels also depend on system pressure, gas flow, appliance design, regulator performance, and installation conditions. The product is designed to provide a quieter connection experience under compatible operating conditions.

Q7: Does the product use a soft gasket?

The specified seal form is hard sealing. This means the connection relies on correctly manufactured and properly seated rigid sealing surfaces. Cleanliness, alignment, and correct tightening remain essential for reliable performance.

Q8: Can the connector be bent sharply to fit a tight space?

No. The connector should be routed with smooth bends and should not be sharply kinked, flattened, twisted, or forced into an unsuitable position. A different length or installation arrangement should be selected if the available space is too restricted.

Q9: Is the connector suitable for every gas appliance?

No. Suitability depends on the appliance type, gas medium, pressure, temperature, connection interface, local regulations, and installation environment. The product should be used only after compatibility has been confirmed by qualified personnel.

Q10: Can the nut be supplied in different materials?

Yes. The nut material can be brass or carbon steel, depending on the selected specification and project requirement. The material choice should consider corrosion conditions, mechanical requirements, appearance, and cost.

Q11: How should leakage be checked?

Leakage should be checked using an approved professional method after installation. Open flames must never be used. If leakage is detected, isolate the gas supply and have the connection inspected and corrected by qualified personnel.

Q12: What manufacturing equipment supports this product?

The manufacturing operation uses equipment such as laser welding machines, CNC forming machines, eddy current flaw detectors, COSMO equipment, and automatic packaging systems. These resources support forming precision, weld consistency, non-destructive inspection, and controlled packaging.

Q13: What certifications and management systems support production?

The company has obtained ISO9001, ISO14001, and ISO45001 management system certifications. These systems provide structured frameworks for quality, environmental management, and occupational health and safety. Product-specific technical requirements and applicable standards should still be confirmed for each project.

Q14: Is the natural stainless steel finish covered or coated?

The listed cover material is none, and the product has a natural stainless steel finish. This gives the connector a clean metallic appearance without relying on an external decorative cover.

Q15: What should be done if the connector is damaged?

A damaged connector should not be repaired with tape, sealant, clamps, or other improvised methods. It should be removed from service and replaced with a suitable connector after the system has been made safe and inspected by qualified personnel.

18. Conclusion

The DN20 stainless steel whistle-free gas connector combines the practical advantages of flexible metal connection technology with a design focused on sealing reliability and acoustic comfort. Its 304 stainless steel tube, 0.25 mm wall thickness, 1 1/8"-16UNF flare nut, hard sealing structure, multiple adapter options, and range of available lengths make it adaptable to many compatible gas installation layouts.

Compared with rigid pipe connections, the product can simplify final appliance connection and accommodate moderate positional movement. Compared with basic flexible hoses, stainless steel offers a durable metallic structure and strong resistance to many common environmental conditions. Compared with ordinary corrugated connectors, the whistle-free design adds a valuable comfort feature by helping reduce airflow noise.

The product’s value is strengthened by the manufacturing capabilities behind it. Specialized stainless steel bellows expertise, standardized workshops, advanced laser welding and CNC forming equipment, eddy current inspection, automatic packaging, and certified management systems support a controlled path from raw material selection to after-sales service. This integrated approach helps create products that are more consistent, easier to specify, and better suited to professional gas, heating, plumbing, and building service applications.

As with every gas connection product, performance depends on correct selection, compatible interfaces, professional installation, suitable operating conditions, and regular inspection. When these requirements are respected, the DN20 stainless steel whistle-free gas connector can provide a durable, clean, flexible, and quieter connection solution for modern gas equipment.
